Ratigan Utility Hooks

JP Ratigan

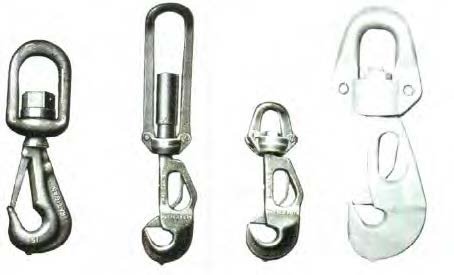

Ratigan No. 51  Utility Hook
  # 51 # 91 Long # 91 Short # 183
Weight Rate 6 Tons 20 Tons 20 Tons 40 Tons

Overview

The Ratigan No. 51 is an all-purpose hook, designed especially for strength and safe, easy handling that will prove extremely useful and valuable to have around any well or field shop. Quick-acting type, with a strong guard to prevent accidental unhooking once it is applied.



    Normal Length
No. 51 Utility Hook 12"
No. 91 Spring Type, with Long Bail and Spring Cover 35"
No. 91 Spring Type, with Medium Bail 30"
No. 91 Less Spring, with Medium Bail 30"
No. 91 Less Spring, with Short Bail 24"
No. 183 Heavy Duty Hook Short Bail 26"
No. 183 Heavy Duty Hook Long Bail 36"

Ratigan Hooks are designed, so that it is very easy to place the elevator in the hook. The point of the hook protrudes sufficiently, so that the derrick man never misses putting the elevator in the hook.

Ratigan # 91 Hook has a capacity of 20 tons and # 183 hook a capacity of 40 tons. Three sizes of bails are interchangeable by means of quick acting lock pin assemblies. The latch is self locking. The latch and dog are opened only by hand.
