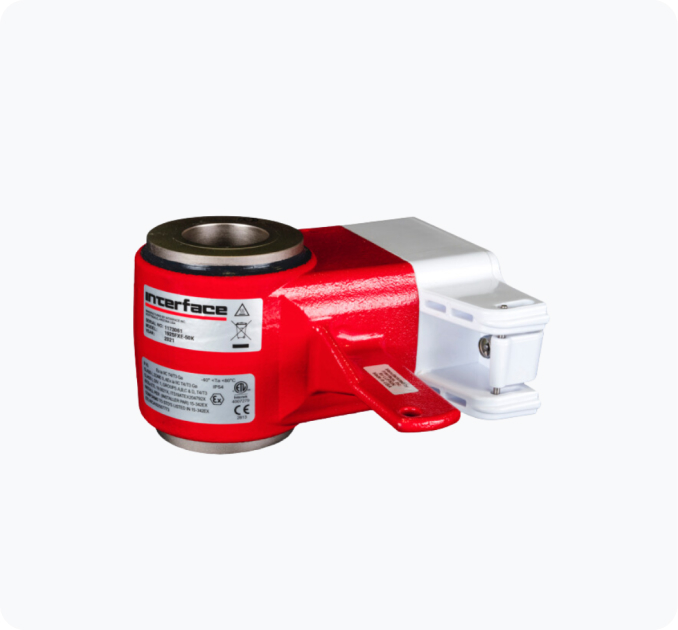

LUFKIN Wireless Load Cell
Wirelessly transmits accurate polished rod load and position data in realtime.


Wirelessly transmits accurate polished rod load and position data in realtime
The cable-free Interface™ Load Cell, developed in collaboration with LUFKIN, delivers accurate data for optimal rod lift control. Polished rod load and position data is transmitted in real time to a controller-mounted receiver base station.
Features
- Transmission range up to 100ft (30meters)
- Rated for Zone 0 hazardous area

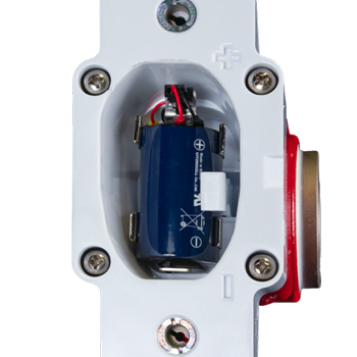

- Onsite battery replacement, LED battery status monitor
- Seamless integration with existing system
Wireless Load Cell + Position Option
The LUFKIN Wireless Load Cell offers optional on-board position sensing capabilities, eliminating the need for hall effect sensors, inclinometers and associated cables. This option accurately measures and monitors both load and position in a single wireless unit.

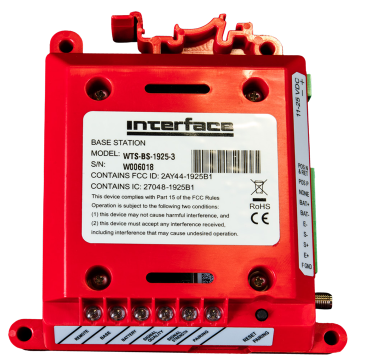

Base Station
