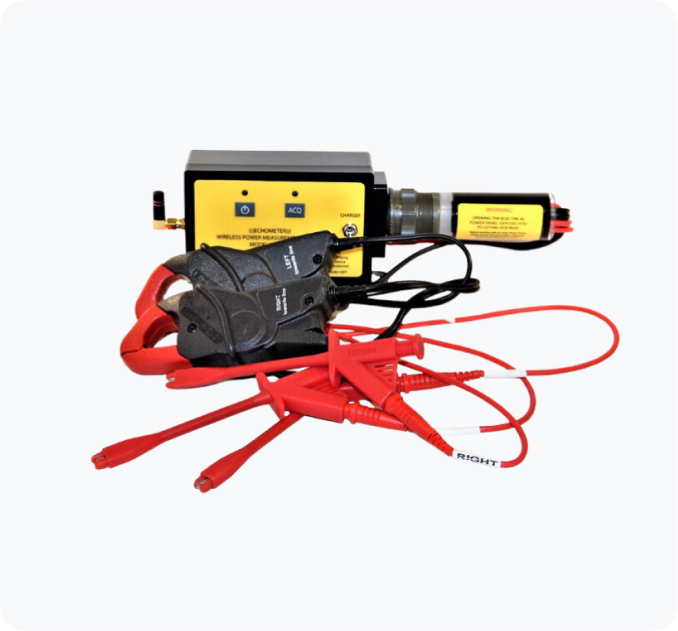

Wireless Power Current Voltage Transducer
Echometer
The Power Current Voltage Transducer measures motor power and current in order to determine overall system efficiency.
The Pressure Transducer has a rugged design and is accurate over a wide range of temperatures.
The wireless pressure transducer (WPT) is a durable device measuring 2" in outer diameter and 8.5" in length, easily attachable to well connections via either an external 1" NPT threaded connection or a special internal 1/8" or 1/4" fitting connection, ensuring a leak-proof seal with hand-tightening.
The pressure transducer features an Elgiloy construction with thin film sensor diaphragm technology, providing exceptional corrosion resistance and accuracy across a wide temperature range. Powered by rechargeable batteries, it offers a rugged and durable design with a wireless radio transmission range of approximately 400 feet line of sight, while also incorporating a thermistor for measuring transducer temperature.
The pressure transducer allows for simple re-zeroing before each test and provides excellent stability, offering a measurement resolution of better than 0.1 PSI with a 1,500 PSI rated transducer, and even higher resolution is achievable with a custom order for a lower pressure range transducer.
The Wireless Pressure Transducer can be installed on a well for various purposes, including pressure testing the tubing, back pressure valve, and casing check valve, as well as recording pressure during a dynamometer test. In plunger lift wells, multiple transducers can be installed to monitor casing and separator pressure during plunger tracking tests.
The pressure transducer features an Elgiloy construction with thin film sensor diaphragm technology, providing exceptional corrosion resistance and accuracy across a wide temperature range. Powered by rechargeable batteries, it offers a rugged and durable design with a wireless radio transmission range of approximately 400 feet line of sight, while also incorporating a thermistor for measuring transducer temperature.
The pressure transducer allows for simple re-zeroing before each test and provides excellent stability, offering a measurement resolution of better than 0.1 PSI with a 1,500 PSI rated transducer, and even higher resolution is achievable with a custom order for a lower pressure range transducer.
The Wireless Pressure Transducer can be installed on a well for various purposes, including pressure testing the tubing, back pressure valve, and casing check valve, as well as recording pressure during a dynamometer test. In plunger lift wells, multiple transducers can be installed to monitor casing and separator pressure during plunger tracking tests.
Features
- Built-in thermistor that measures transducer temperature
- All pressure measurements temperature compensated
Specifications
- 2" O.D. x 8.5"
- Rated at 1,500 PSI
