Tee Base Stuffing Boxes
Combines the stuffing box body and pumping tee into a single unit - eliminating one threaded connection from your wellhead stack. Side outlets available in 2" or 3" LP depending on bottom connection size. All include a 1" bleeder port.
Wellhead Systems Inc.

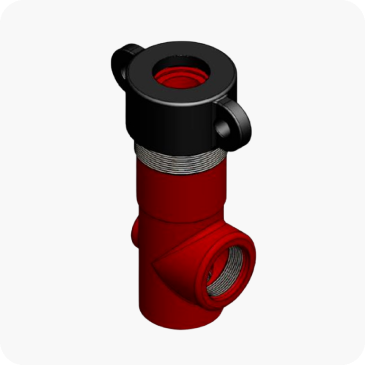

Premier Tee Base - BSTB™
No-Bolt Cap, Brass Inverter Ring, Female Bottom

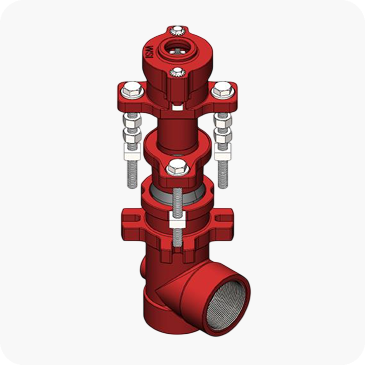

Economy Tee Base - TBSB
Integral Pumping Tee with 1" Bleeder Port
1500 PSI
Economy Inverted Tee Base - IVTBSB
Lower Profile than Classic TBSB
1500 PSI
1500 PSI

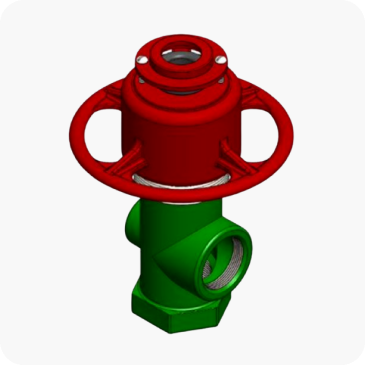

Wheel Stuffing Box - WSB
Integral Tee, No-Bolt Cap, Ultra Compact
2500 PSI
2500 PSI
Select Your Compound
WSI continually tests new compounds against ever-changing well conditions. Cone packing fits rods 1" through 1-¾" in sets of 4 (3 top cones + 1 bottom cone). Field testing is recommended for your specific conditions.
Soft
Sweet crudes with high oil-to-water ratios and low abrasives
SBR - EconomyHigh Temp
Steam injection wells producing sweet crude
Super Dome™
Low friction, excellent chemical resistance; one-time retrofit kit
Hard
Sweet crudes with low oil-to-water ratios
KB™
Kevlar brass - CO₂, H₂S, excellent abrasion; most proven for steam
Crown Ring
For JSB and WSB threaded cap stuffing boxes
Teflon
Low oil-to-water ratios; reduces rod noise in sensitive areas
SBR - EconomySuper Life™ 575
Sweet crudes, high oil-to-water; also in crown rings
"V" Style
NBR or HSN — used in E-LUG™ for Classic and Premier models
Brass Filled
Reduces polished rod scale build-up; sweet crudes
SB Silicone
High water-cut; resistant to gas decompression
